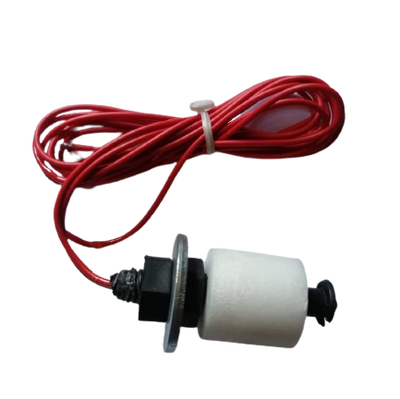

WS01 - Magnetic Float Switch for Water Tank and Sump

WS01 Magnetic Float switch for water level sensing, can be used to design a water tank overflow alarm and control system. This sensor has a moving ring on a cylindrical body. A reed switch is housed inside the central cylinder which senses the movement of the outer ring under the influence of the buoyant force of raising water level. This is a NO( Normal Open) type switch that closes on sensing of rising water level.

Color: Multi

Material: Polypropylene

Max Current rating: 0.5A

Max Voltage rating: 100V

Switch Configuration: SPST

Contact: Open / Close

Application Type: Water

Mounting: Vertical
